High-mix, low-volume contract manufacturing presents a distinct operational challenge for quality control teams. If your shop produces part families — a series of aerospace fittings, connectors, or valves that share an identical geometric profile but scale up or down in size — writing an individual inspection program for every single variant is a measurable drain on your engineering hours.
The Pain Point: File Duplication and Version Control Chaos
The common workaround is inefficient by design: take an existing program, hit “Save As,” manually edit nominal lengths, and nudge clearance planes by hand. This brute-force approach leaves your inspection process open to manual keystroke errors, creates an unmanageable pile of standalone files to maintain under quality standards like AS9100, and ties up your most skilled metrologists in repetitive busywork instead of higher-value tasks.
The Solution: Parametric Control via ZEISS CALYPSO PCM

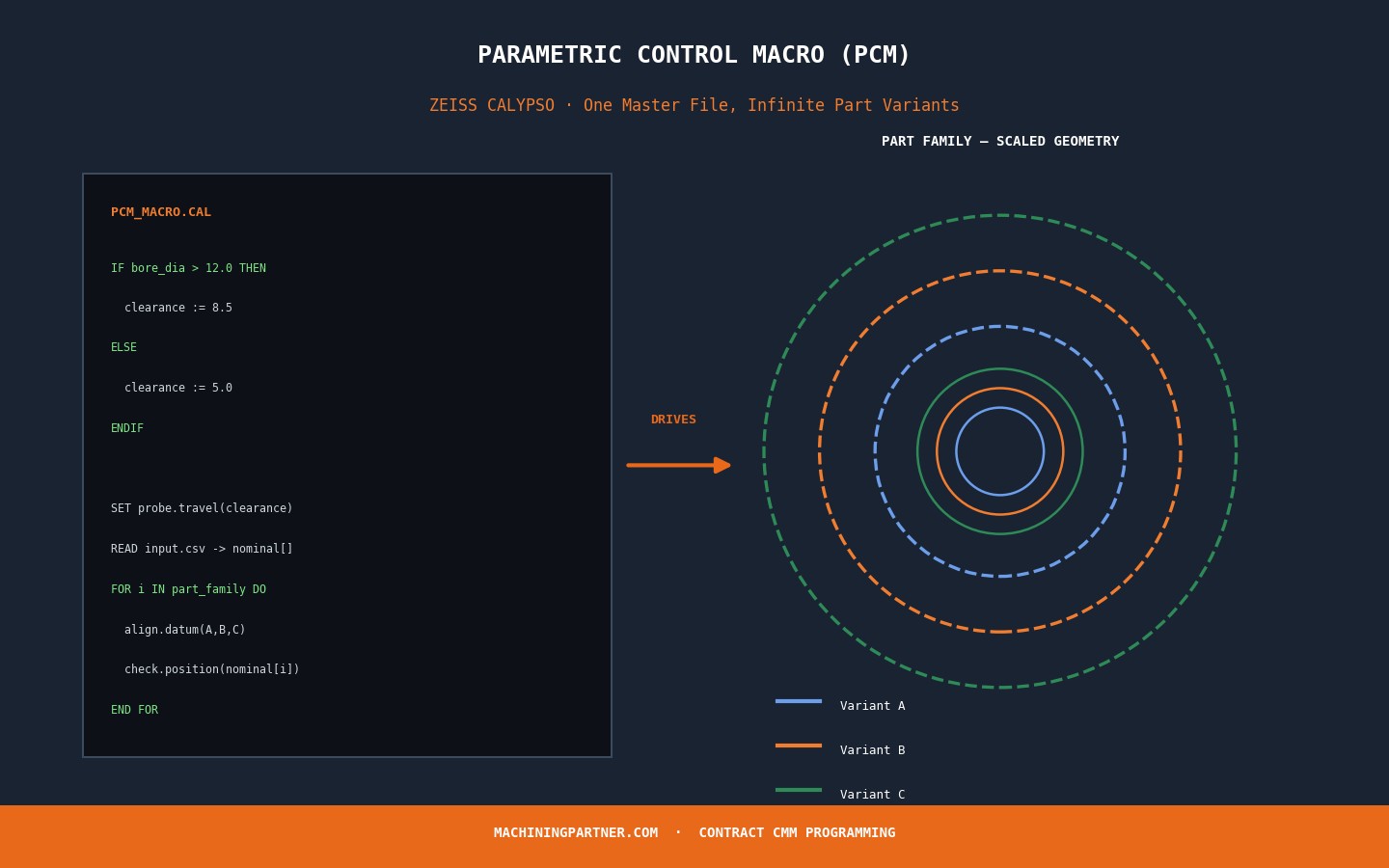

ZEISS CALYPSO PCM (Parametric Control Macro) is the direct fix for this overhead. Instead of hard-coding fixed numbers into each feature, PCM lets a programmer drive the entire metrology layout with formulas, conditional if/then logic, and dynamic input — turning one inspection program into a template for an entire part family.
- One Master File Per Part Family: With a properly built PCM loop, you maintain exactly one master file for an entire family of parts. When a new variant lands at the CMM bay, the operator runs the master script, which prompts a clean input menu or pulls the specific nominal dimensions and tolerances for that lot directly from a CSV or Excel sheet.
- Self-Calculating Clearance Logic: This is where parametric programming earns its keep on the safety side. If a bore diameter scales up on Variant B, the PCM logic automatically recalculates clearance plane positions, adjusts probe search distances, and scales travel vectors — the program protects itself from a crash because it computes its own safe parameters in real time.
⚙️ Implement Advanced Metrology Logic: Explore our Contract CMM Programming Support to deploy parametric PCM logic across your quality department.
From Roadblock to Asset
A parametric approach shrinks program setup time to seconds, removes manual transcription error from the equation, and keeps your revision history clean. It turns an inspection room that used to be a bottleneck into a department that can validate high-volume part families without breaking stride.
